Feature:

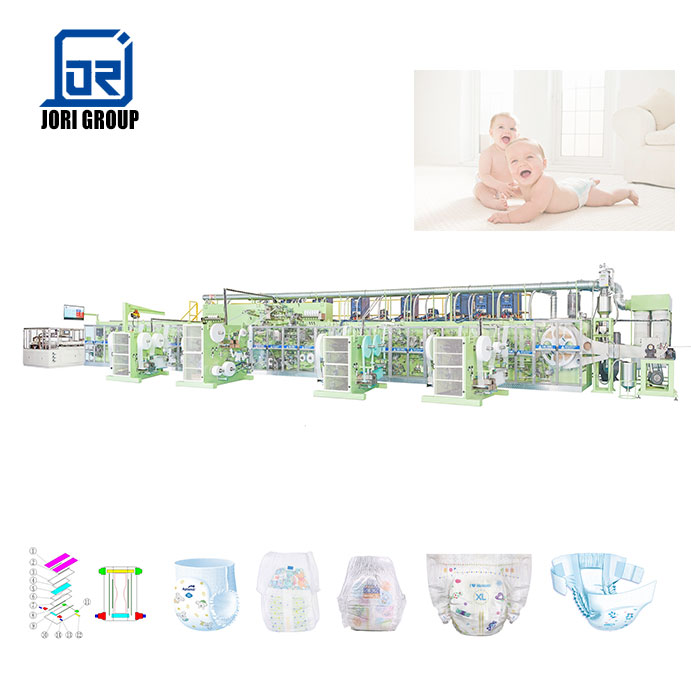

Specification of Baby Diaper Making Machine Production Line:
| 1. Product Structure | Topsheet N.W+Fluffy core (Absorbent paper)+ADL+Wrapping N.W+PE Film+Leg/cuff NW+Backsheet NW+Elastic NW+S tape+Frontal Tape |
| 2. Product specification
|
S、M、L、XL |
| 1) S length：390mm width：310mm | |
| Core length：380mm core width：95mm | |
| 2) M length：440mm width：320mm | |
| Core length：410mm core width：105mm | |
| 3) L length：490mm width：320mm | |
| Core length：420mm core width：105mm | |
| 4) XL length：530mm width：320mm | |
| Core length：420mm core width：105mm | |
| The above specifications are based on your sample baby diaper | |
| 3. Design speed | 700pcs/min (M) |
| 4. Stable production speed | 500pcs/min (M) |
| 5. Center distance of production line | Referring to the distance between the center line of product material and the main frame plate,300mm |
| 6. Product weight tolerance | ±5% |
| 7. Rate of the finished product | ≥98%(not including the defective products caused by glue applicators, feeding of raw materials, and joints of raw materials |
| 8. Efficiency range | ≥85% |
| 9. Power | 400KW |
| 10. Weight | 72T |
| 11. Electric supply | 380V±5%、50HZ |
| 12. Dimension | 22.3m ×2.3m×3.5m (L×W×M， Including crusher) |
| 13. Air pressure | 0.6-0.8Mpa(Buyer needs to prepare for air source) |
| 14. Working direction of the machine | to be decided by the buyer |
| 15. Color | It depends on the customer’s requirement |
