Maxi Rolls & Toilet Rolls Tissue Paper Making Production Line/ مكينة صناعة مكسي رول

This toilet paper making production line includes the following machines:

  • Fully Automatic Toilet Paper Rewinding Machine ( with dots to dots glue laminated parts for making kitchen towel paper )
  • Three Units of Conveyors Transfer
  • Maxi Roll Paper Bandsaw Cutting Machine
  • Maxi Roll Paper Shrinking and Packing Machine
  • Double Channel Log Saw Paper Cutting Machine
  • Single Package Toilet Paper Rolls Packing Machine

This toilet paper making production line includes the following machines:

  1. Fully Automatic Toilet Paper Rewinding Machine ( with dots to dots glue laminated parts for making kitchen towel paper )
  2. Three Units of Conveyors Transfer
  3. Maxi Roll Paper Bandsaw Cutting Machine
  4. Maxi Roll Paper Shrinking and Packing Machine
  5. Double Channel Log Saw Paper Cutting Machine
  6. Single Package Toilet Paper Rolls Packing Machine

Features of Toilet Paper Roll & Glue Laminated Kitchen Towel Paper Making Machine (Middle Level):

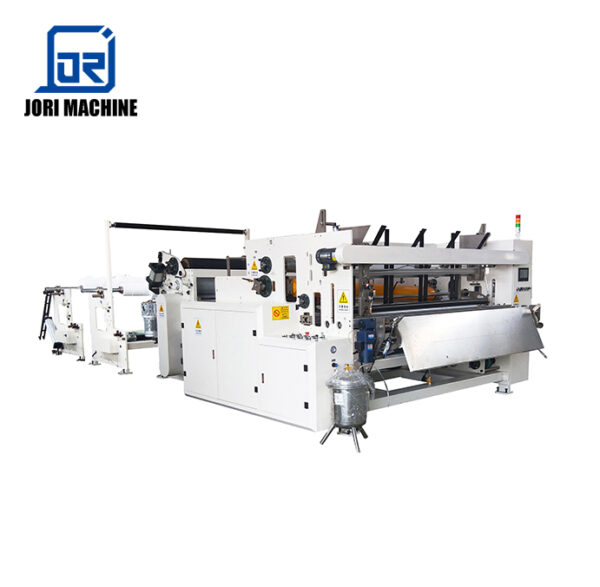

Automatic High-Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
The machine has a core feeding unit and can do both with and without the core. Raw material from the jumbo roll after full embossing or edge embossing, then perforation, end cutting, and spray the tail glue become a log. Then it can work with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through the touch screen, the whole process is automatic, easy to operate, lowers the man cost. And Our machine can be special-made according to clients’ requirements.

Function of Toilet Paper Roll & Glue Laminated Kitchen Towel Paper Making Machine (Middle Level):

  • 315mm Diameter Dots to Dots Glue Laminated Device.
  • This machine is for making toilet paper rolls, the whole structure is wall-type, which make the machine run stable at high speed, and noiseless.
  • Perforation distance is adjustable to meet different distance needs.
  • Automatic core feeding system, automatically pushing the log after rewinding, then rewinding the new log again.
  • Automatic edge-trimming, glue spraying, and sealing synchronously at one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and saving the cost.
  • Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on the touch screen.
  • Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have a bigger range.
  • Two wall-type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
  • Adopt jogging switches for wearing the paper, easy and safe to operate.

Specification of Toilet Paper Roll & Glue Laminated Kitchen Towel Paper Making Machine (Middle Level):

Model 1500B 2000B 2350B 2550B 2750B 2950B 3150B
Jumbo Roll Max. width 1350mm 1850mm 2200mm 2400mm 2600mm 2800mm 3000mm
Max.Jumbo  Roll diameter Standard φ1100mm unless otherwise specified
Jumbo Roll Standings 2-3 stands (Pls specify when order)
Jumbo Roll Inner Diameter Standardφ3”(76.2mm) unless otherwise specified
Data setting HMI
Programming controller PLC, touch screen
Operate Speed 0-230m/min
Finished Log Outer diameter Φ90-280mm
Finished Log Inner diameter Φ38-76m
Diameter of finished log control By Electronic/Air control
Mechanical driving Driving by Stepless gearbox
Air -system 3HP air compressor, min. pressure 5kg/cm2pa ( Provide by user)
Main driving Frequency conversion speed regulation 9KW 380V,50HZ  (Refer 2000B)
Glue Laminated Unit 315mm diameter, steel to rubber
Dimensions Length 6m x Width 3m x Height 1.7m  (Refer 2000B)
Weight 3-4T (Refer 2000B, depends on the model you have)
